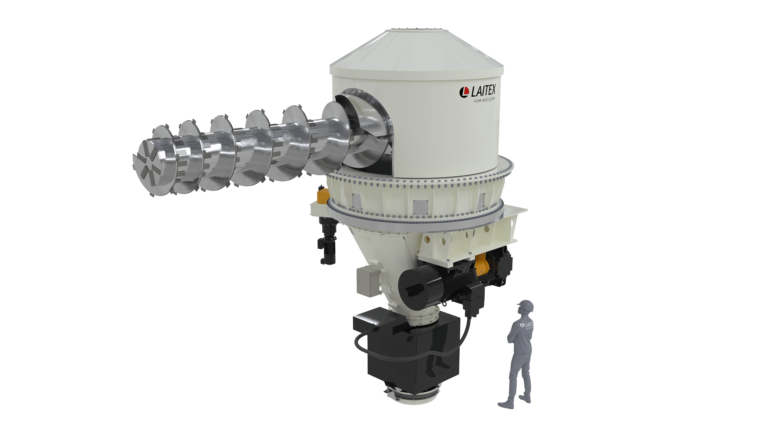

White storage discharger and an engineer standing aside.

Silo Dischargers

Silo Dischargers or Silo Reclaimers vary in sizes and technology, depending on the capacity of the silo and stored materials. They enable efficient and reliable unloading of the coarse material with high controllability. Laitex design and manufactures tailored heavy-duty discharger solutions based on customers’ needs.

Silo Dischargers can be divided into two main groups: Screw Dischargers and Live Bottom.

Read more

SILO DISCHARGER

Specifications for typical applications
Screw diameterUp to 1000 mm
Construction details
Construction materialsCarbon-, stainless and wear resistant steel. Hard facings and other materials on request.
Conveying elementSingle conveying screw with application specific dimensions and materials.
Drive unitsPlanetary gears and gear motor.
ComponentsService hatches for inspection and service. Built in bearing housings with radial roller bearings. Automatic lubrication unit. Sensor for blockage.
SafetyGuards and protective devices according to EN 618.
Other options are available on request
ATEX directive (2014/34/EU)
All Laitex devices can be equipped to fulfil the requirements of ATEX Equipment group II in categories 2 G, D and 3 G, D (suitable for ATEX zones 1, 2, 21 and 22).
CE-Marking
All Laitex equipment conform to Machinery Directive 2006/42/EC, and are therefore acceptable for CE-marking.

Laitex's silo dischargers

Laitex_ikoniArtboard 6

Characteristic Benefits

  • The material discharging rate can be easily adjusted.
  • Energy efficiency.
  • Low maintenance need.
Laitex_ikoniArtboard 4

Bulk materials

  • Woodchips, bark, peat
  • Pellets
  • REF (plastic materials)

Silo Screw Dischargers

Laitex Screw Dischargers can be used as a part of bulk material feeding and storing systems. The Screw Dischargers are a trouble-free solution for even the most demanding applications. For a maximum service life, all the exposed parts of the discharger are stainless or wear resistant steel. In addition to abrasion resistance, the functionality of the discharger is also improved.



Live Bottom for small volumes

A Live Bottom provides reliable feeding of various solid fuels. Typically Live Bottoms are used for small volume bulk material receiving applications, which require accurate and controlled dosing. The Live Bottom solution can be implemented including several screws depending on the fuel feeding requirements.
